15kg ahşap peletler vffs çanta şekillendirme dolum sızdırmazlık torbalama makinesi

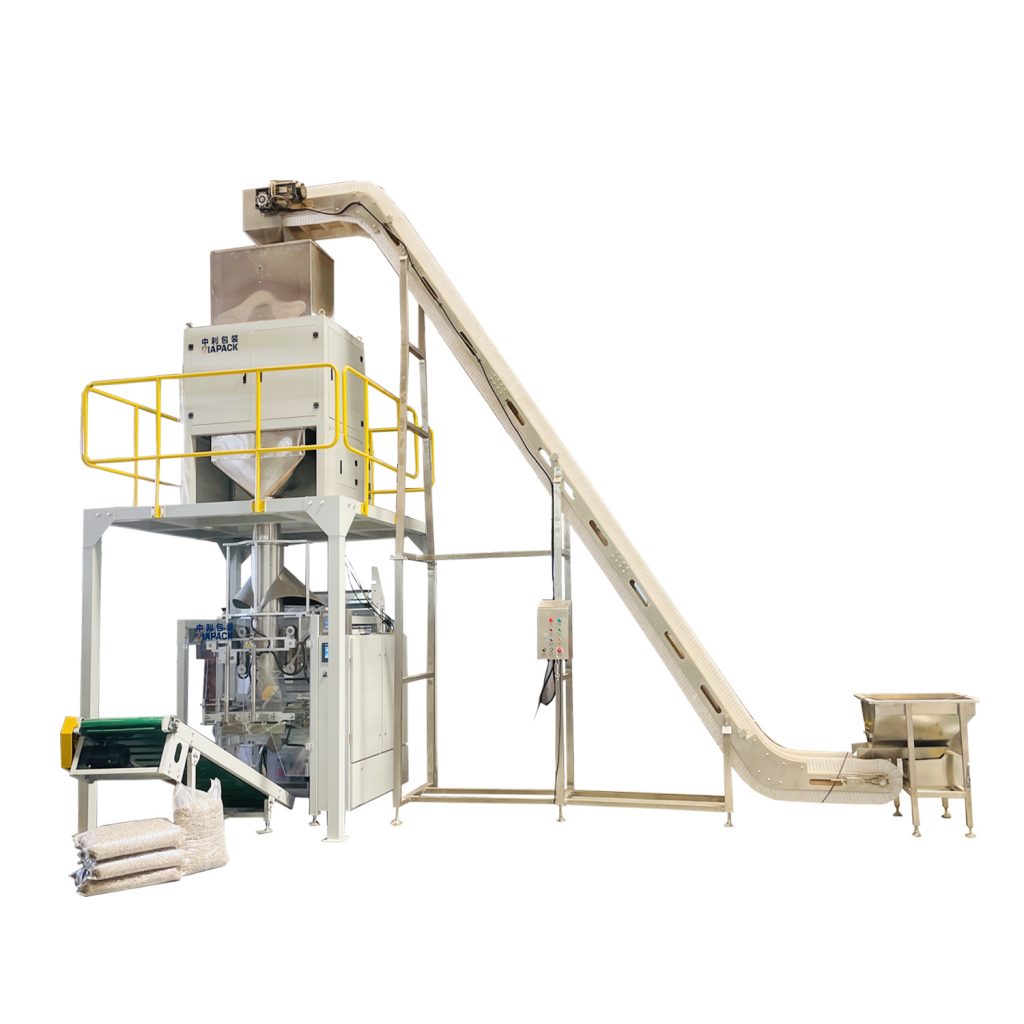

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Tanıtım :

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Teknik parametreler:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Basınçlı hava gereksinimi: 0.6Mpa 0.65m³/dak

Reel outer diameter: 450mm

Çekirdek iç çapı: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Ana Özellikler ve Özellikler:

• Çok çeşitli poşetler: Yastık ve Köşebent poşetler.
• Yüksek hız: 20-50 torba/dak
• Kullanımı kolay: PLC kontrolör ve renkli dokunmatik ekran, dokunmatik ekranda arıza göstergesi.
• Ayarlanması kolay: Farklı poşetleri değiştirmek için sadece 10 dakika.
• Frekans kontrolü: Hız, menzil içindeki frekans dönüşümü ile ayarlanabilir.
• Yüksek Otomasyon: tartım ve paketleme sürecinde insansız, arıza durumunda makine alarmı otomatik olarak.
• Güvenlik ve Hijyen:
• Film yok, makine alarm verecek.
• Makine alarmı ve yetersiz hava basıncı olduğunda durun.
• Güvenlik korumaları ile güvenlik korumaları, makine alarmı ve güvenlik korumaları açıldığında durma.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

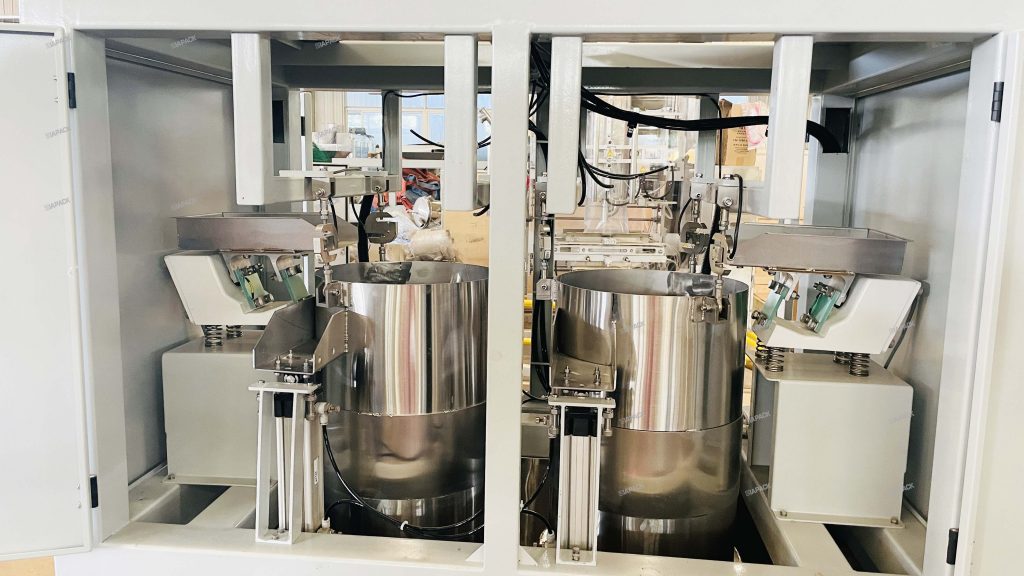

• ZLC2-15k double bucket weighing machine

  Tanıtım :

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Özellikler:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
