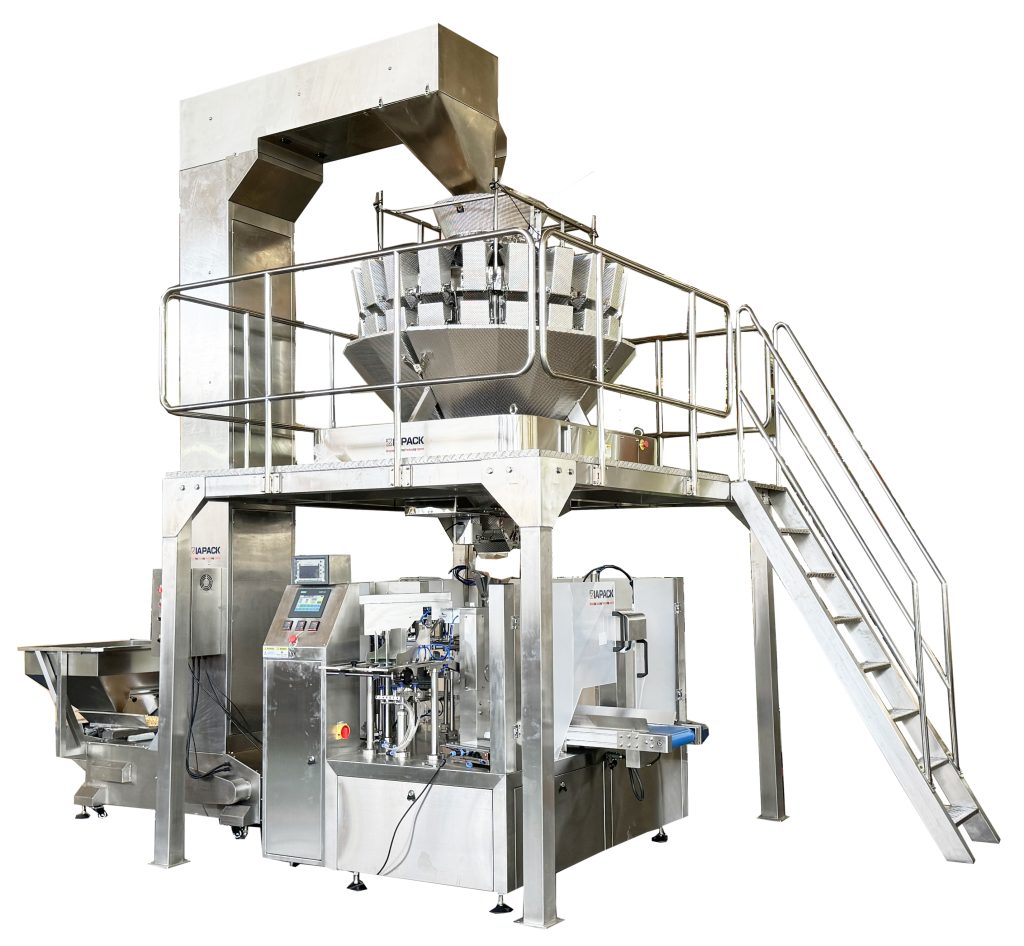

This machine is a new generation of packaging machine developed by our company for prefabricated packaging bags. The whole machine adopts stainless steel body, organic safety glass door, beautiful appearance and ensuring safety; it adopts German Siemens PLC control, equipped with touch screen human-machine interface control system, Chinese touch screen (optional in English), easy to operate; frequency conversion speed regulation, through horizontal bag feeding mode, more bags can be stored for bag storage, with low requirements for bag quality, high bag division and bag loading rate; This machine uses the frequency conversion speed control device, which can adjust the speed at will within the specified range, and the width of the bag is controlled by the motor; it is equipped with multiple sensors, which will automatically alarm and open the protection when the bag is missing, overweight, no blanking and no bag; warning signs, door opening and shutdown alarms and other safety prompts, all kinds of fault alarms, fault information display, high safety factor; the packaging range is wide, general Through selecting different meters, it can be applied to the packaging of leisure food, liquid, paste, particle, powder, irregular block and other materials.
Teknik parametreler:
Ambalaj poşeti malzemesi: kompozit film, PE, PP
Packing bag type: zipper self-supporting bag, mouth self-supporting bag, self-supporting bag, flat bag (three side seal, four side seal, handbag, zipper bag)
Package size: W:10.-200mm L: 100-350mm (can be customized according to customer requirements)
Mechanical station: eight stations
Sealing form: wide edge welding (mesh or wave pattern)
Code printing form: color band hot code, printing position can be adjusted
Packing speed: ≤ 30-35 packages / min (determined by material characteristics and filling weight)
Mechanical weight: 800kgs
Voltage: 380V, three-phase 50Hz
Total power: 4.5Kw
